KEEPING ART: the Care of Prints, Drawings & Watercolours

By Bert Witkamp
Technical art information sheet no. 1

version: 2 September 2013
updated: 7 January 2018

Art work generally is fragile and will get damaged if not properly cared for. Below some guidelines for portable two-dimensional art work such as drawings, prints or watercolours. In this text we first consider framed art behind glass on display and then framed and unframed art in storage.

1.       Purchased framed art behind glass

The purpose of framing and mounting is twofold: to adequately present and protect the work of art inside of it. You need to consider three factors in preserving the art object well:
          The material quality of the art work,
          The manner in which it has been mounted and framed, and,
          The location where the object is to be.

1.1     The material construction of the art work
Photo 1. Fading in top print due to
inferior pigments and exposure to light.

Both prints are equally old.
Art work, in the classical western tradition, is made of a specific range of materials, applied by specified procedure. One key factor in the selection of these materials is permanency – art materials if well applied are to result in a “permanent” work of art. Practically other factors also come into play such as availability, costs and technical knowledge of the artist. Many modern artists have insufficient knowledge of art materials, an issue which particularly affects the choice and application of colours. The concept of “permanency” does not feature in the ideology of many modern artists, notably as of WW II. The work of those artists is not made to last, sometimes deliberately so. The issue of material soundness, however, is a concern for buyers and collectors, especially as art usually does not come cheap or is purchased in order to be preserved. Laymen rarely have the knowledge or means to assess the material soundness of a work of art. But you may be able to see whether proper paper has been used as the support for your print, drawing, water colour or gouache. Proper art paper does not or hardly yellow.

The permanency of colours often is hard to establish by sight alone – when it comes to inks and pigments you depend on the artist’s consciousness and knowledge. Charcoal, black pencil and Indian ink don’t fade, but the ink of felt pen and markers do loose their original colour. The moral of this story is to carefully observe the recommendations in section 1.3 concerning the location of art you have already bought and to do some investigation on the material soundness of art you consider to buy in the future, in particular when such an object has a hefty price tag attached to it or needs preservation from a collector’s point of view.

1.2     Mount and frame

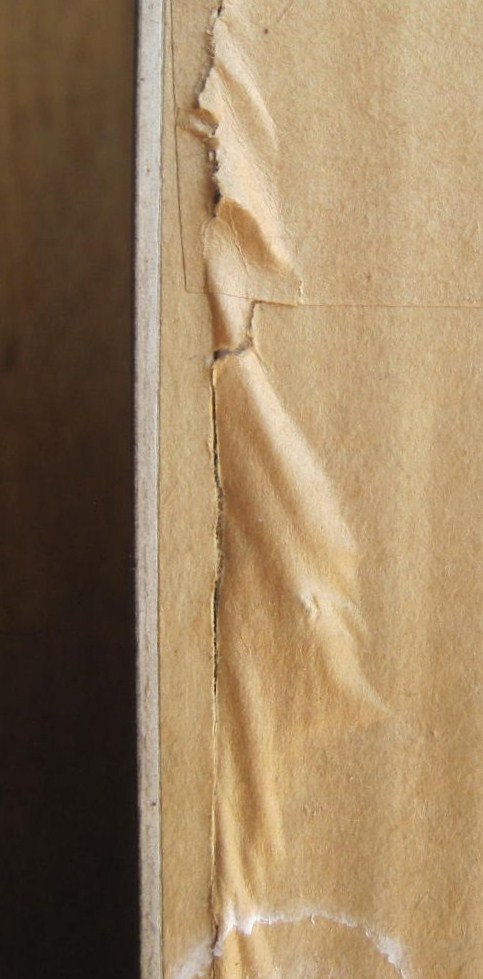

Photo 2. Protective
glued strip torn by
Mounting board for art work is especially made board and should not be substituted by cheap ordinary board or carton. Art mounting board should be acid free and not or hardly discolour over time. The board, if tinted, should be tinted by the use of inks or solids that are fast to light; that is, do not easily fade. One purpose of the mounting board is to protect the art work from contact with the glass. If the picture has been mounted in a wobbly manner, or is wobbly by itself, this purpose might not be achieved and remounting is to be considered. The art work should be attached to the mounting board by a few drops of gum Arabic (water based glue) at the top, or, better by a strip of water based glue connecting mount and art work at the top of the work. Do not use or accept sellotape or the like as the adhesives of such materials in time migrate into the absorbent surfaces onto which they have been applied. A protective sheet of paper should be placed behind the mounted picture. The sheet should be of acid free paper, such as good plain art paper. Behind this protective sheet is the backing of the frame. A suitable backing material is  oil-free masonite (see photo 3).

Photo 3. The gap between frame
and backing allows dust, dirt &
bugs is in, see photo 4.
Photo 4. Dirt in frame as frame was
not sealed. Picture is mounted
 on paper rather than board.
Masonite is compressed exploded wood. It has a smooth side and a rough side that has the imprinted mesh which is part of the pressing process. The rough side should be the outside. For small pictures a good cardboard also will do. Unsuitable backings are made of cheap cardboard such as the kind of which boxes are made. Cheap yes, suitable no. The backing is tacked against the frame. The border area of the backing and the adjacent frame should be covered by a glued strip of paper – the glue usually is fish glue – and such sealing serves to keep dust and bugs out (see photo 2). It is a good thing to do, but don’t use cello tape or similar adhesive strips. Glass, 2 or 3 mm thick and preferably non-reflexive and uv filtering, is in front of the mounted picture and held in place by the frame. Dust it from time to time, clean it with a damp cloth or methylated spirits. Avoid water seeping into the frame.

Frames usually do not require much attention save for the occasional dusting; but wooden frames that are oiled need to receive their periodic oil treatment. That is about twice a year. If you do not know what oil to use, or are limited in your choices, just use baby oil. The main thing about furniture oils is that they should be non-drying oils. If you are tired of the repeating oiling business just use boiled linseed oil. That’ll suffice for a long time. Boiled linseed oil does “dry.”

1.3     Location when displayed
Your art work either is in storage or on display. We’ll first look at the on display situation. Most important about the place of display when it comes to preservation are the don’ts.

Thy shall not:
Expose your picture to direct sunlight.
Hang your picture close to a source of heat.
Hang your picture where there are strong drafts.
Hang your picture against a damp wall or in an excessively damp environment.

1). Sunlight shall cause your picture to fade when inferior pigments or inks are used and may eventually also cause durable pigments or inks to fade or change colour. This point is dramatically demonstrated in photograph no 1. Fading is accelerated by the use of poor colouring agents, as in this case. Exposure to sunlight may also cause other problems by the differential absorption of warmth by light and dark area’s with white areas staying cool and dark area’s warming up. Such temperature variations cause differences in expansion or contraction across and within the picture, and results in local variation of in humidity as well. These factors contribute to the gradual destruction of your work of art. The detrimental effect of light is reduced by using uv filtering glass, but even then art work should only be illuminated by indirect light.
2). Art work should not be placed close to illuminating light bulbs as these shall warm up the object. Artificial light may also emit the damaging uv rays – but LED lights don’t. Bear this in mind when you use spotlights to highlight your art work on the wall or floor.
3.The art work should have normal room temperature and generally abrupt changes in temperature should be avoided. Art work should not be hung in a spot with excessively varying temperatures, such as close to a fire place or other source of heat.
4). Drafts bring about changes in temperature and/or humidity and transport dust that may settle on or in your picture. Not good.
5). A humid wall or prolonged exposure to excessively humid air shall transfer humidity onto and into your frame and picture. Humidity shall cause fungi to thrive on your art work. In that event you need to open the frame, take out the picture to dry up and free it of debris by the use of a soft brush. It is best to consult an expert if the picture is valuable. The mount, protective sheet and backing must be replaced if affected. The frame must be thoroughly cleaned and dried. Humidity also promotes undesirable mechanical and chemical action and reaction.

2        Art in Storage

Art in storage is either framed or not framed.

2.1     Stored art in frame with glass
These objects best are kept in a vertical position to reduce the chance of breaking the glass. The main requirement is to store the work in a reasonably dry place. In tropical area’s one must be mindful of termites. Inspect periodically – once or twice a year.

2.2     Unframed stored art
Photo 5. Sleeve of portfolio. The
brownish spots are caused by fungi.
Art purchased as a print, drawing, watercolour or gouache usually is kept in a portfolio; with protective sheets of good paper between them. It is better if the works are mounted as this leaves the surface free of contact with other materials. Collectors may store in special drawers. The main dangers are excessive humidity and sometimes insects. Periodic inspection is necessary – you’ll be surprised how easily dust and bugs find their way into you art collection!
